Accident risks increase when cyclists and pedestrians share trails
SLOW DOWN FOR SAFETY
SLOW DOWN FOR SAFETY
*Source SAAQ
Specifications
Chicanes Documentation
Get product
details
Download the technical data sheet for the chicanes

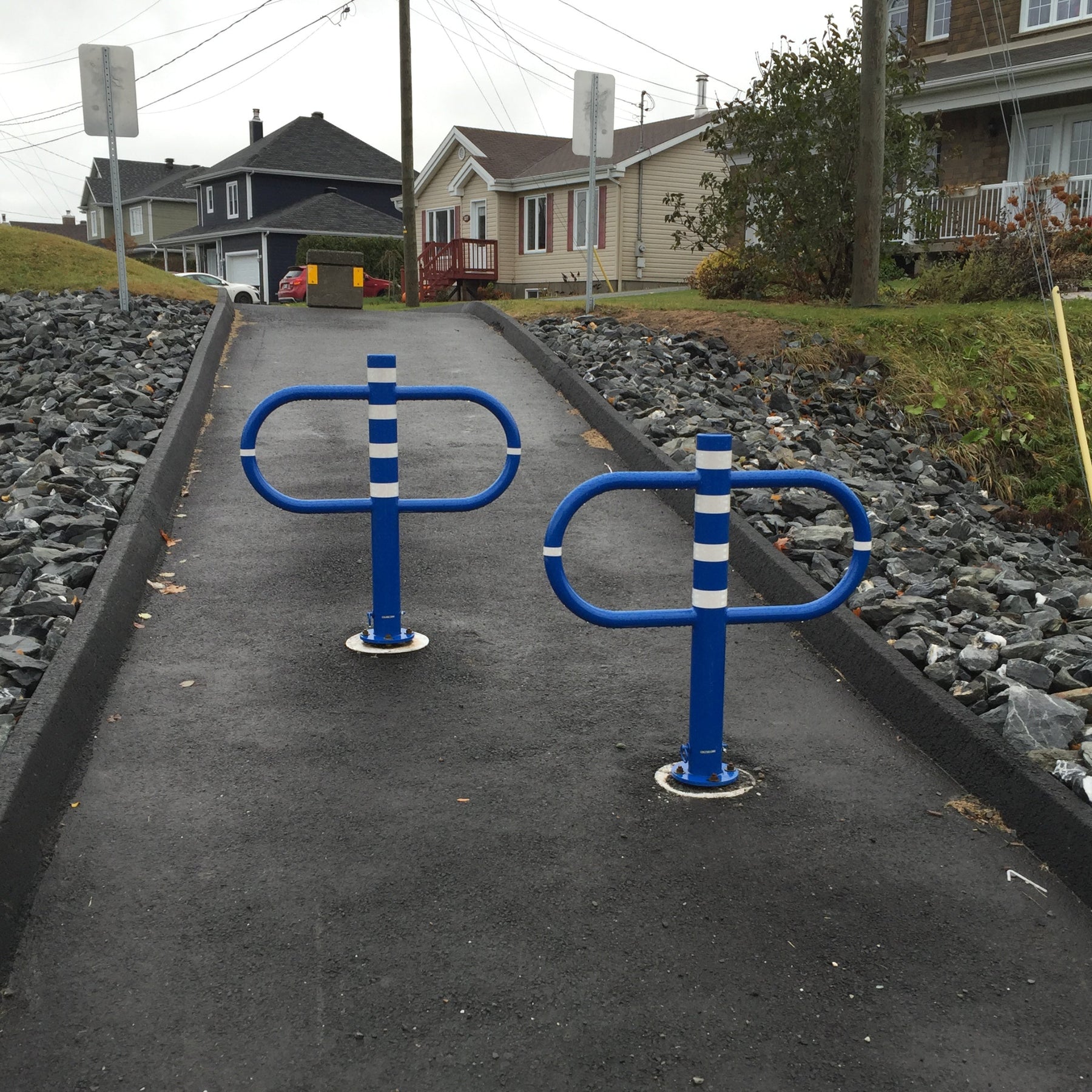

Chicanes consist of two (2) structures installed near intersections to force users to slow down
- Welded and polyester powder-coated aluminum tubing with High Intensity grade reflective vinyl strips
- Removable locking system with rod and padlock

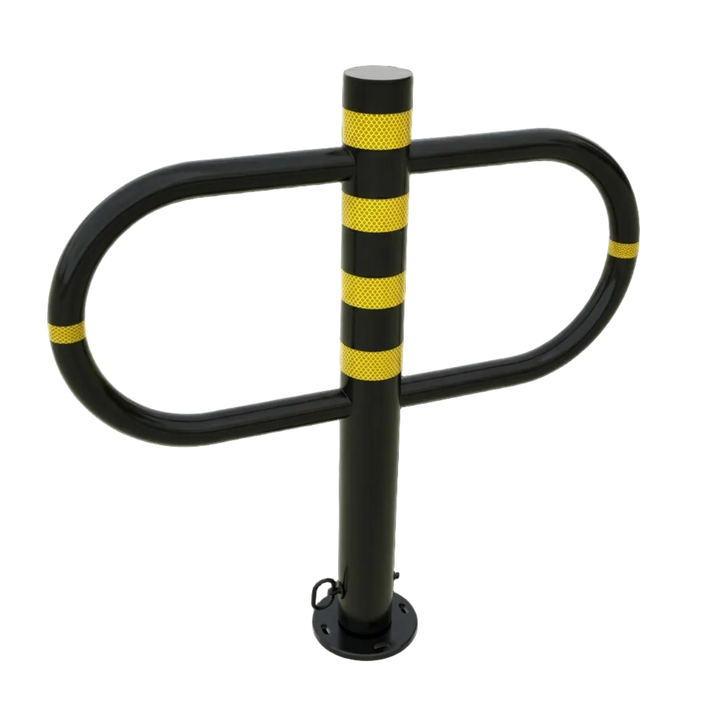

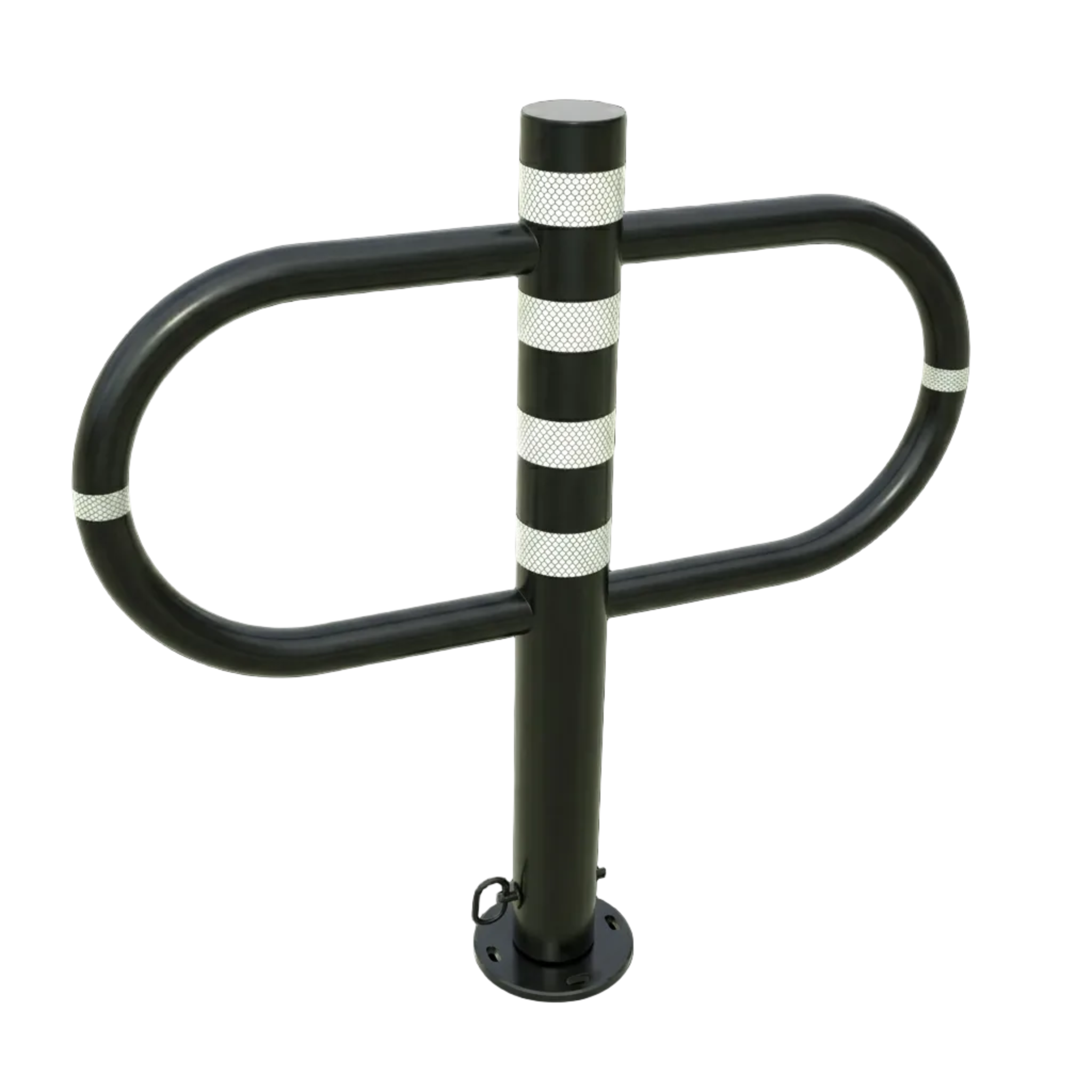

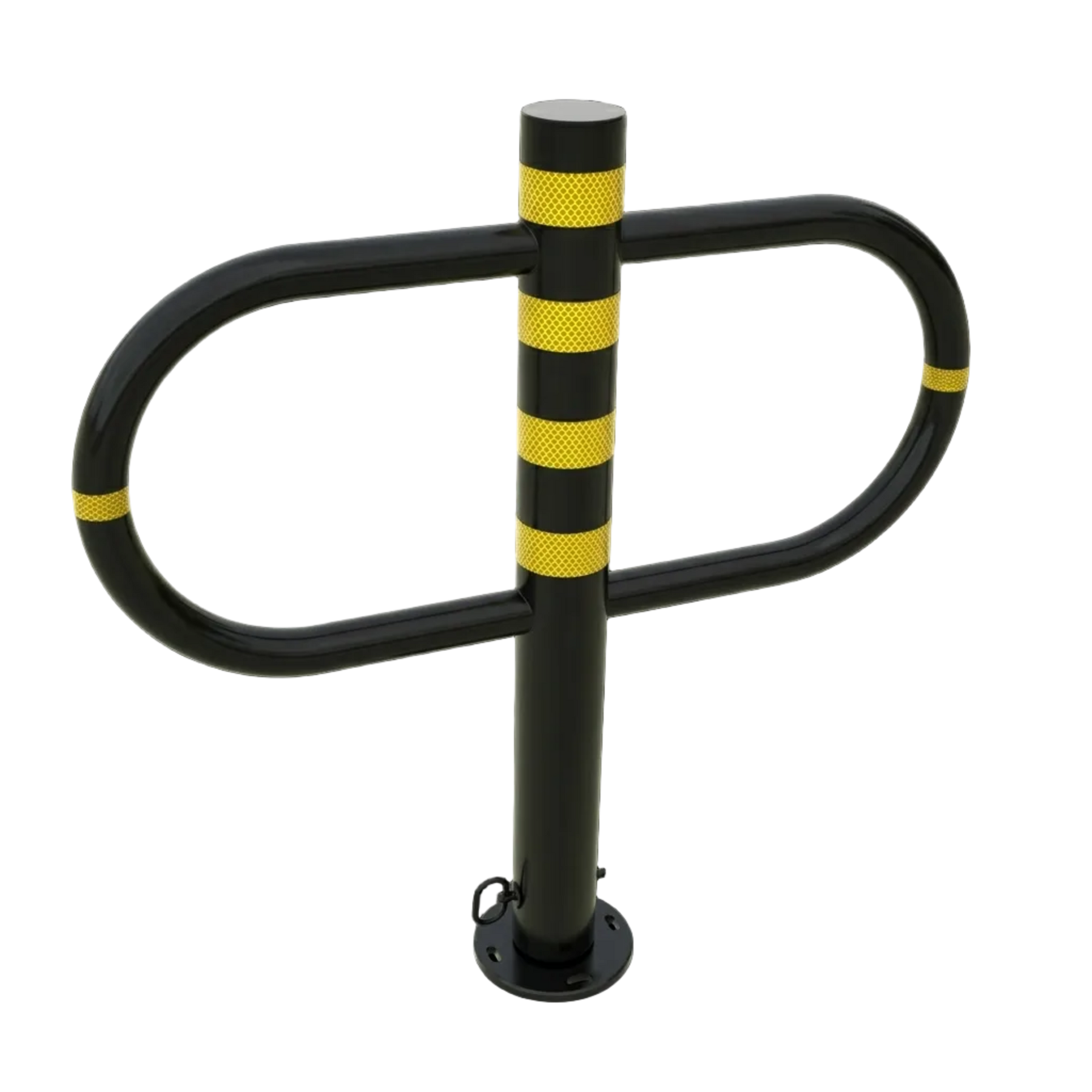

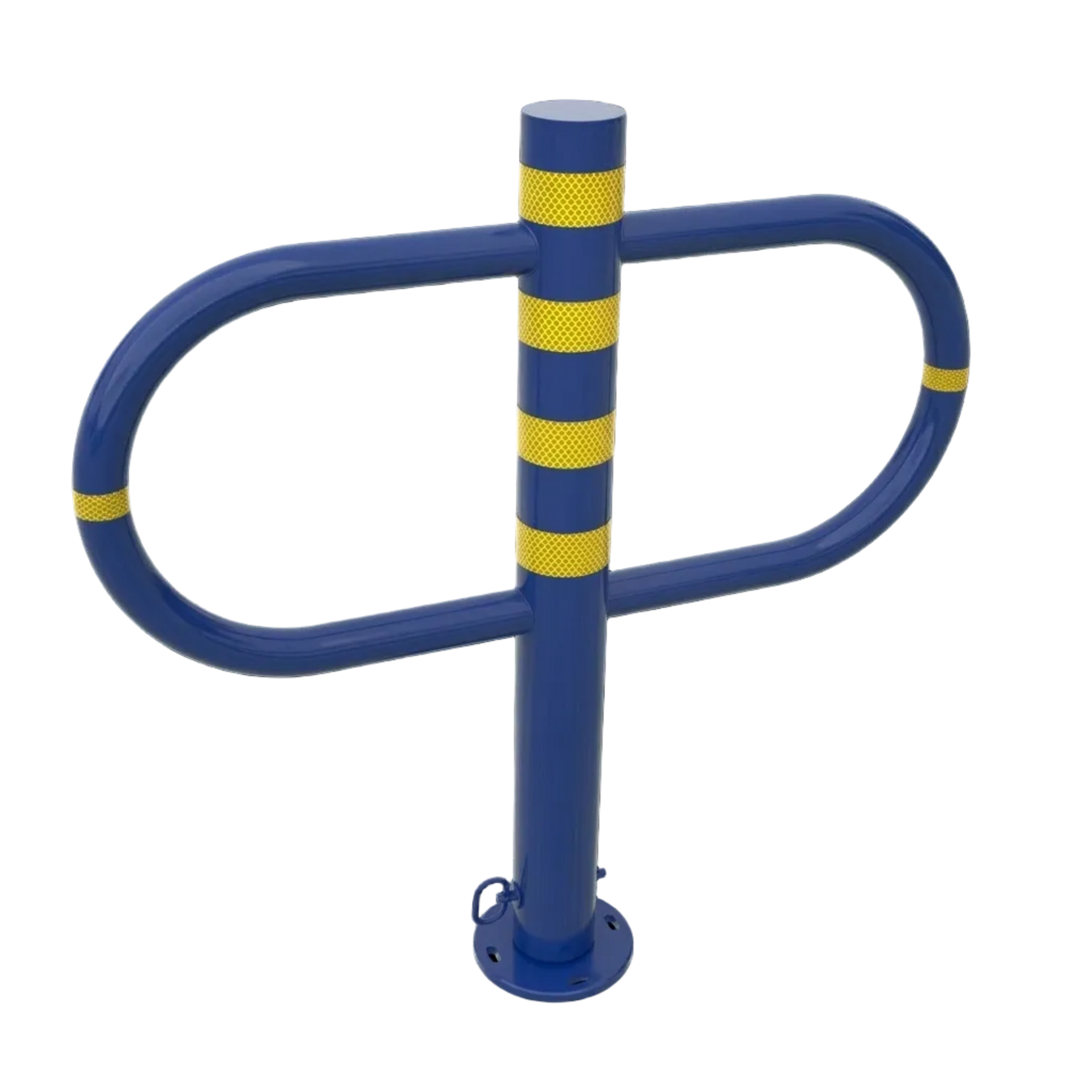

- Standard dimensions (2-arm chicanes): Overall 1000 x 1000 mm (39.4 x 39.4 in) Central post dia. 102 x thk. 5.7 mm (dia. 4 x thk. 7/32 in) Variable arm length, maximum 900 mm (35.4 in)
- Base dimensions: dia. 203.2 mm (8 in), with BCD 160 mm (6.3 in), height 151.6 mm (6 in)
- Installation on 900 mm pin with welded plate, Uptek painted steel (black), with four (4) 1/2-13 taps
- Option: snow removal protection plate
Reflective Strips

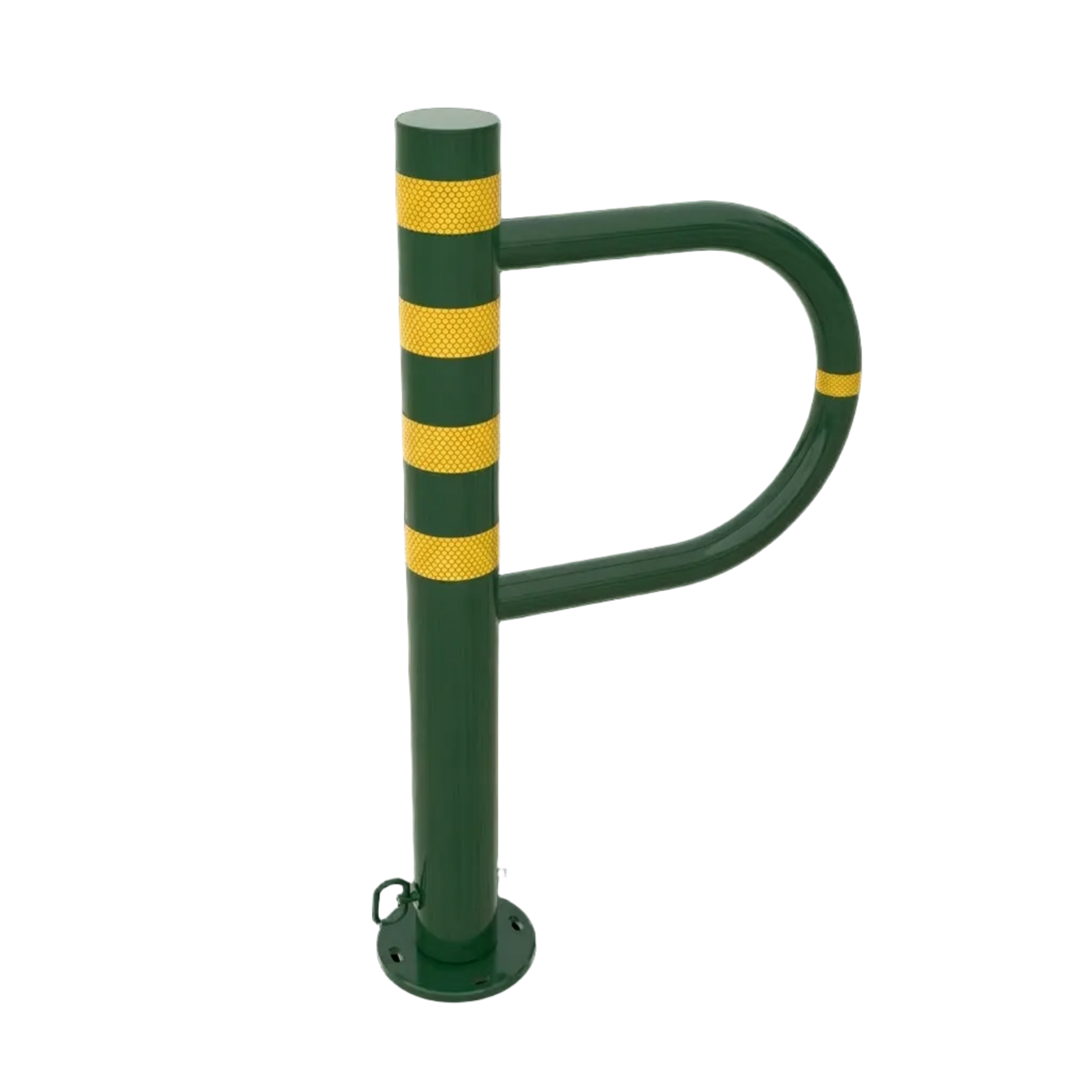

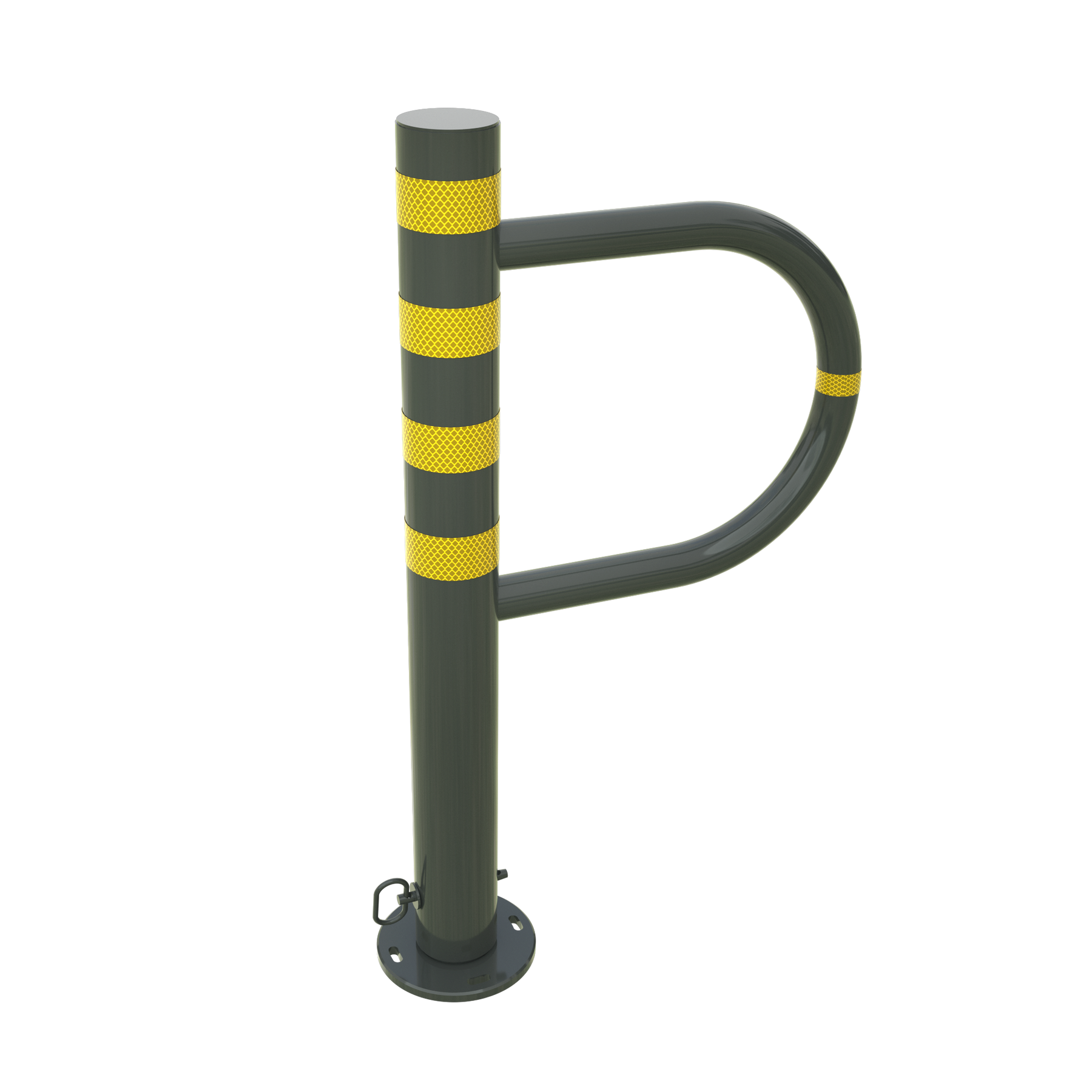

White or yellow high-intensity grade reflective vinyl tape
Rotation System
Allows passage of authorized vehicles (maintenance, emergency vehicles, etc.)
Anchoring
In soil or concrete.
Winter removal: optional cover plate allowing complete removal of the baffle while protecting the anchor from snow removal operations.
Your chicanes barriers at a glance
Our baffles are made of robust and corrosion-resistant materials. They are also resistant to discoloration due to UV rays. Our products are designed to last. The baffles are made of 100% aluminum.
In road safety, a chicane is a physical barrier that creates an artificial deviation from the trajectory (in an "S" shape). By forcing drivers to weave slightly, it naturally reduces speed without the discomfort of speed bumps.

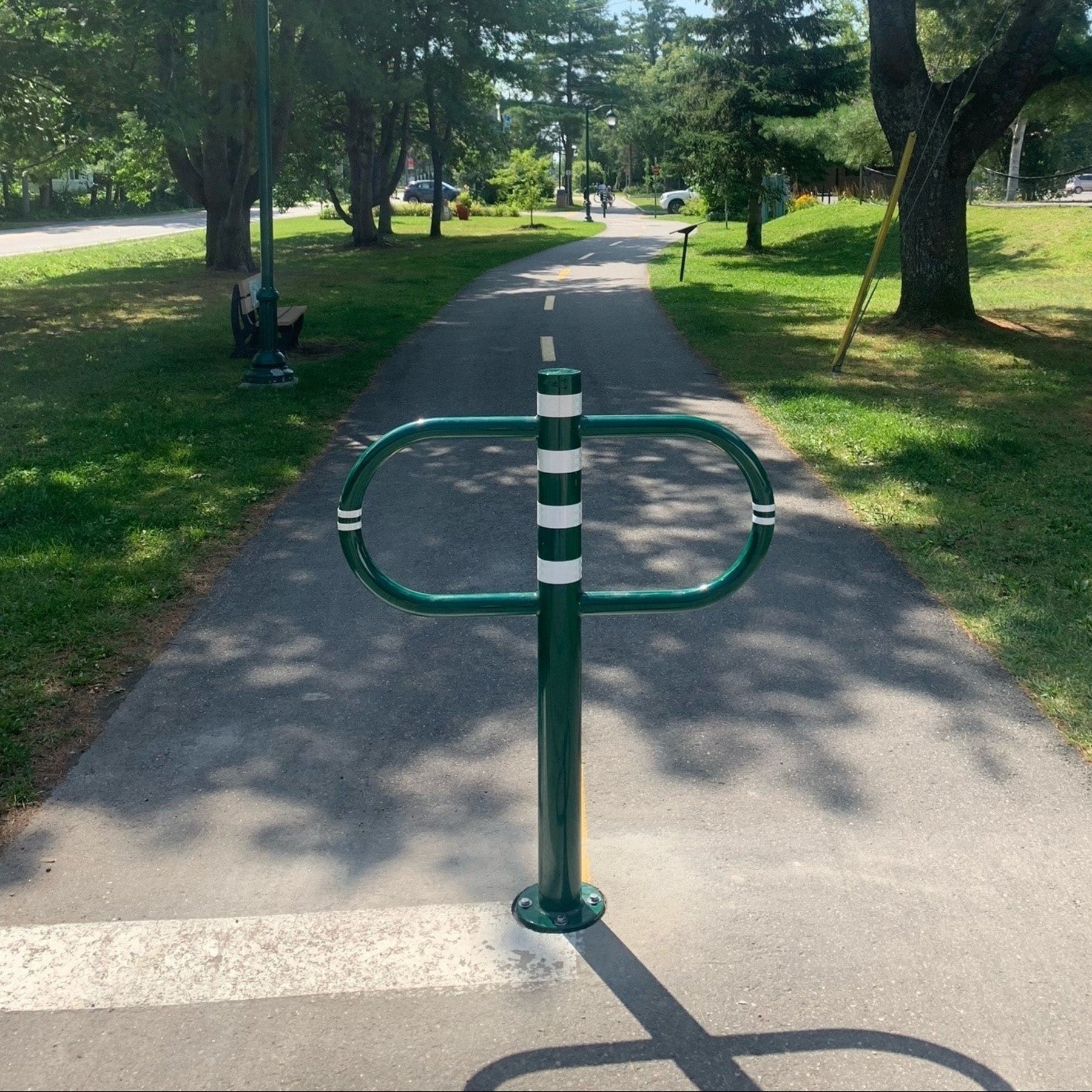

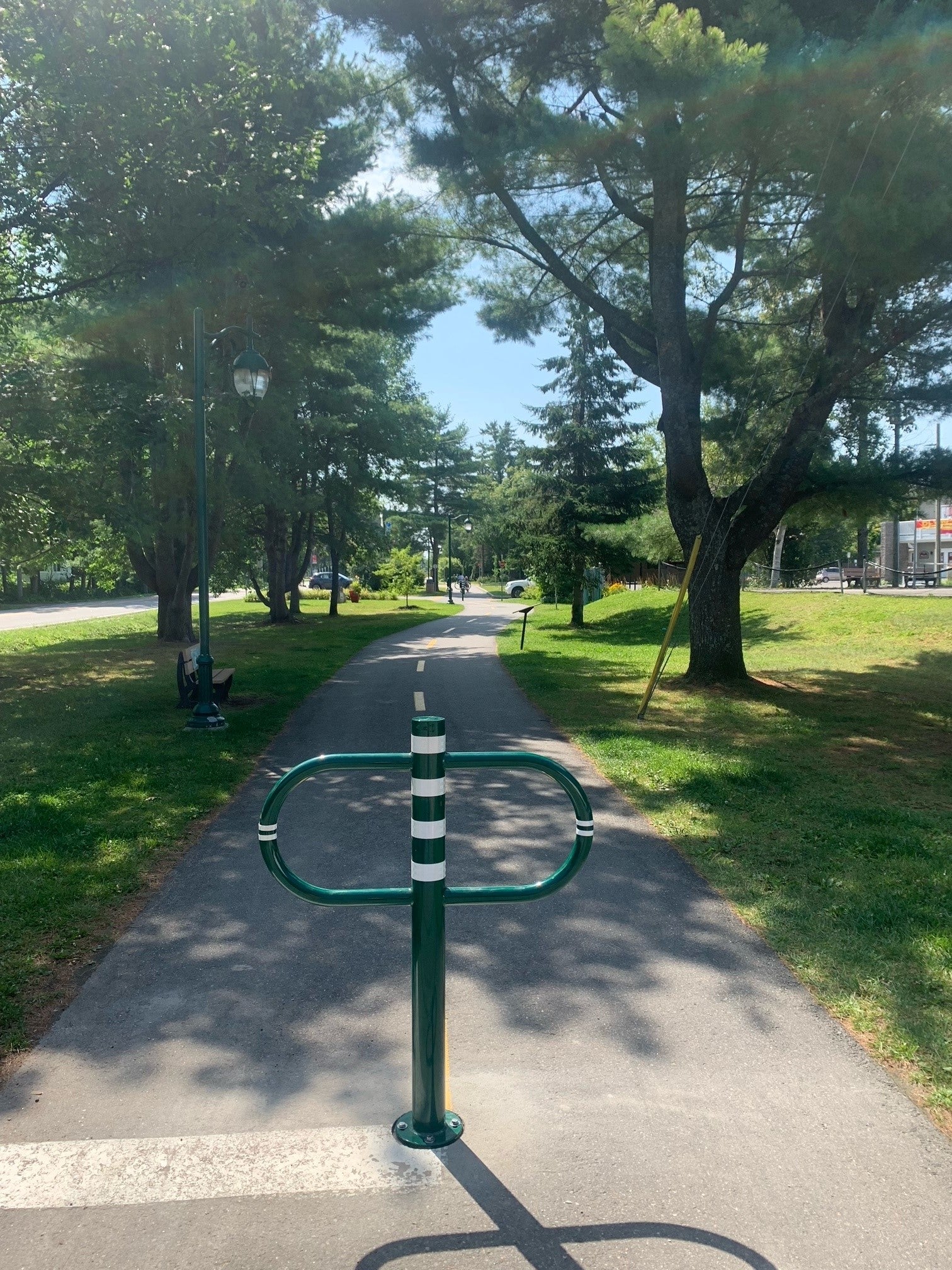

It is often installed at the entrance to cycle paths, multi-purpose trails or at the approach to intersections to improve travel safety.
Kalitec offers two ways to install your chicanes. The first option is with a concrete foundation, but this can be costly. To help municipalities save money, Kalitec offers a second option: a driven pile. This is driven into the ground with a welded plate that sits flush with the ground.
In addition, this option also includes a cover plate for winter, which secures the hole to prevent dust, debris, and snow from entering. For more information, please consult our technical documentation.
Frequently Asked Questions
Chicanes slow down cyclists at strategic locations where increased vigilance is required, particularly at intersections, pedestrian crossings, or shared zones. They help reduce the risk of collisions and promote safe coexistence among different users.

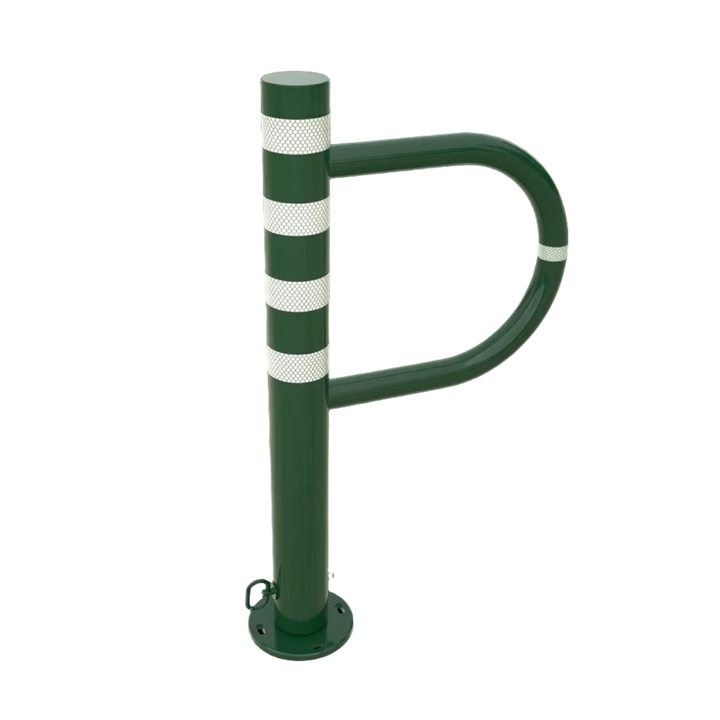

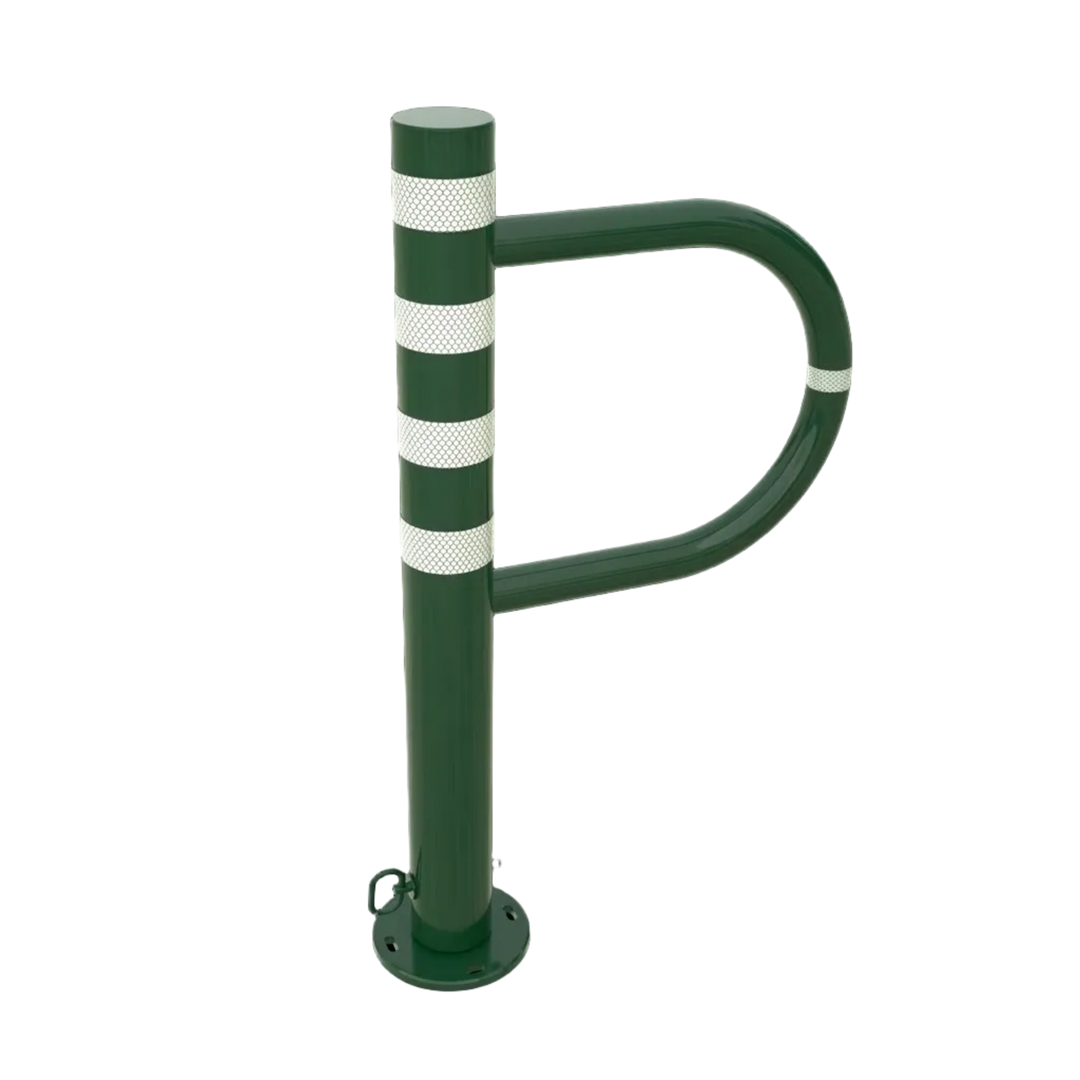

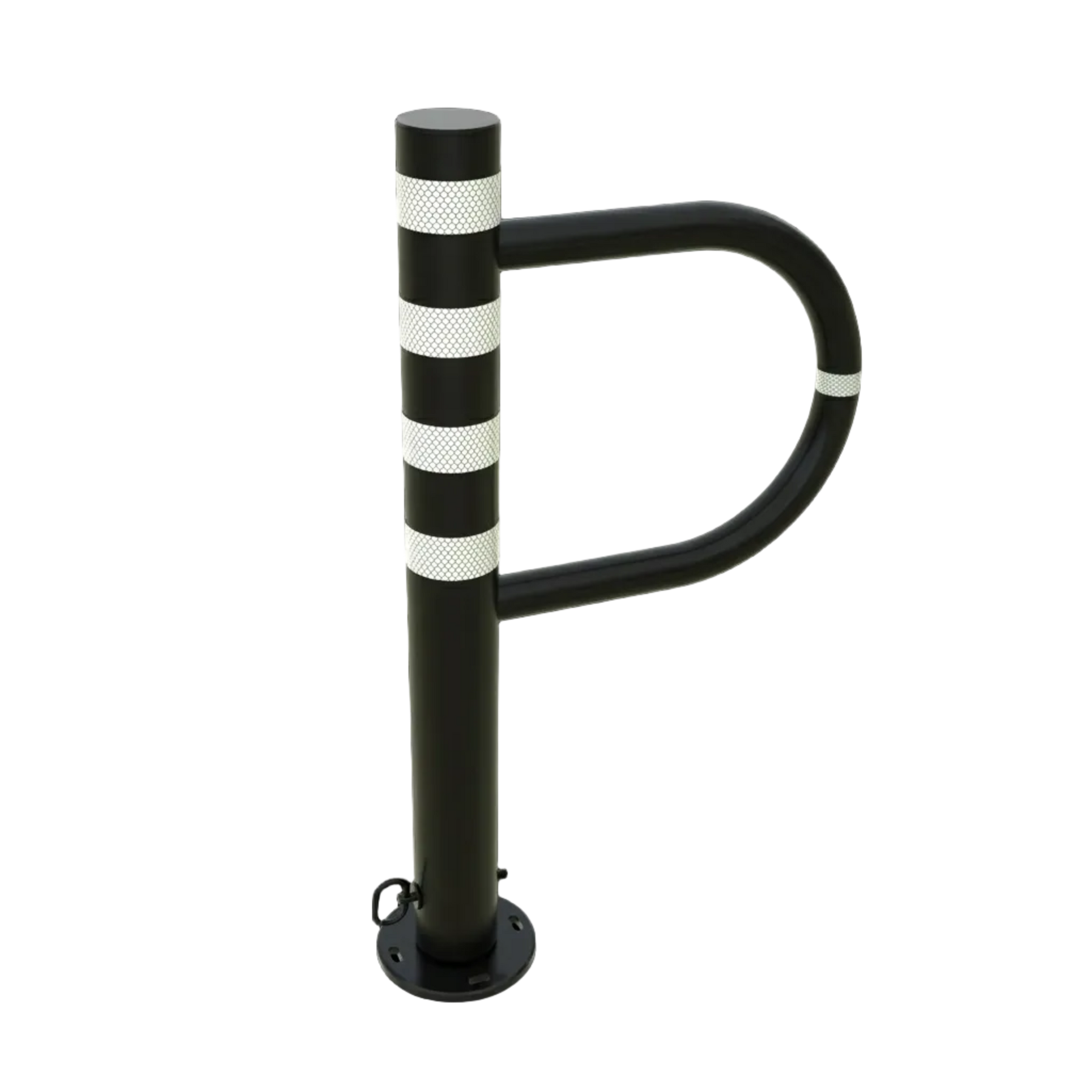

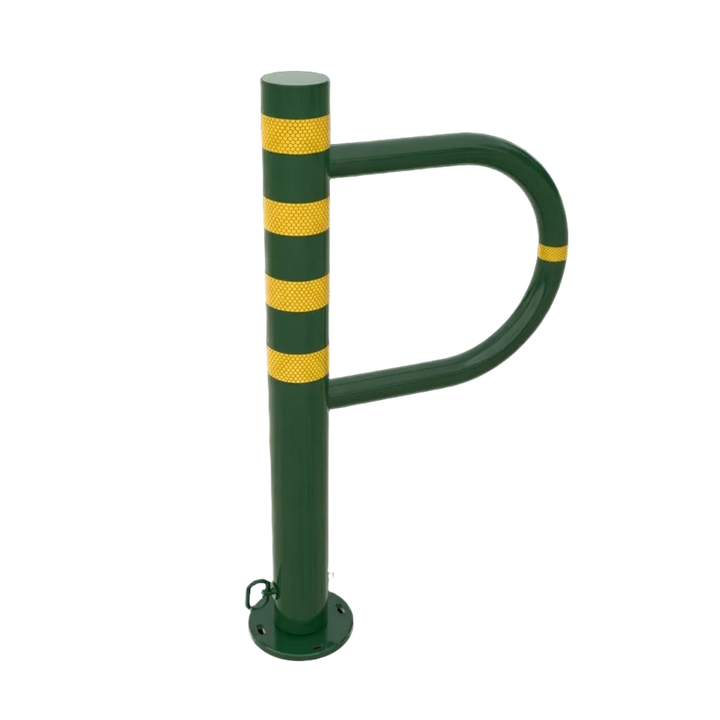

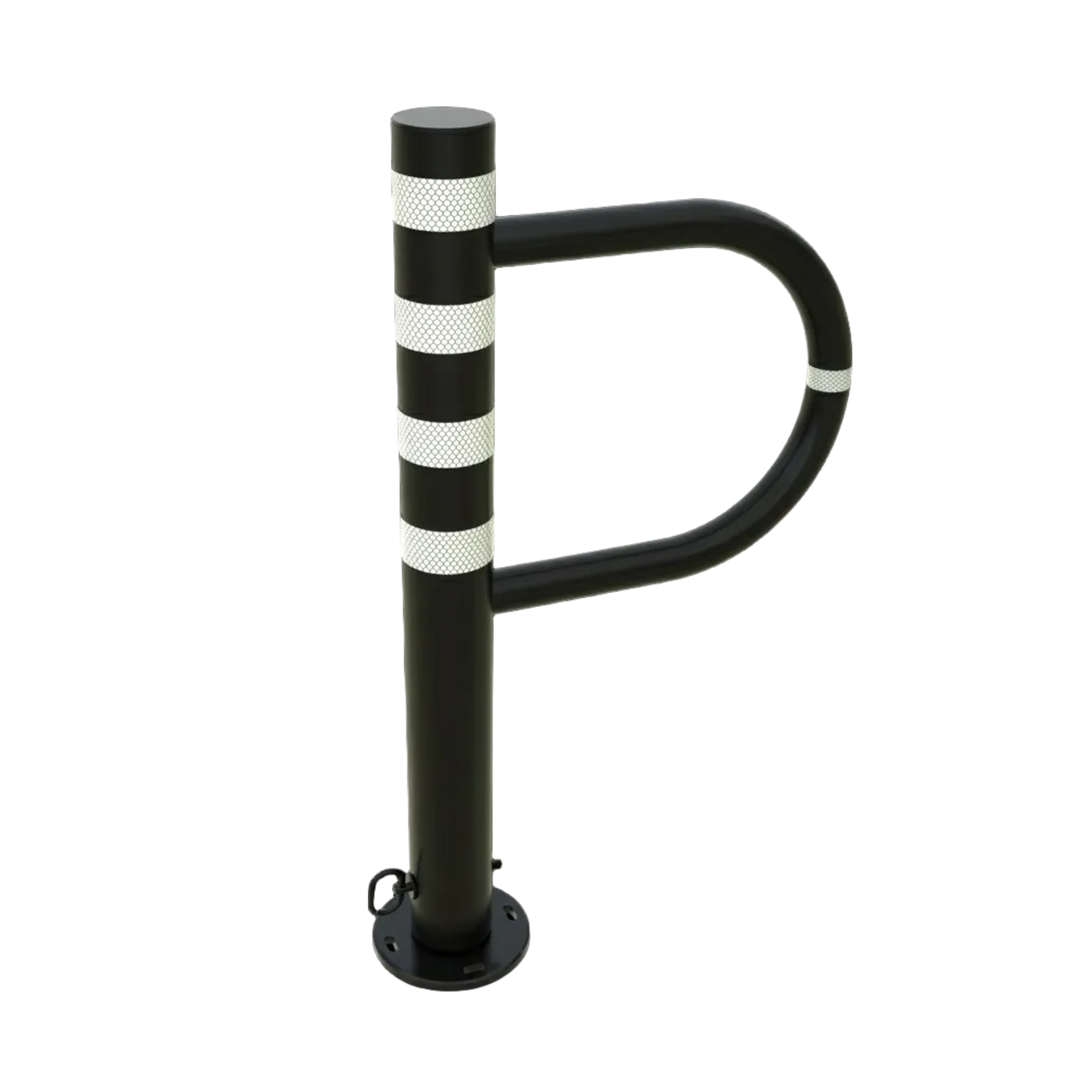

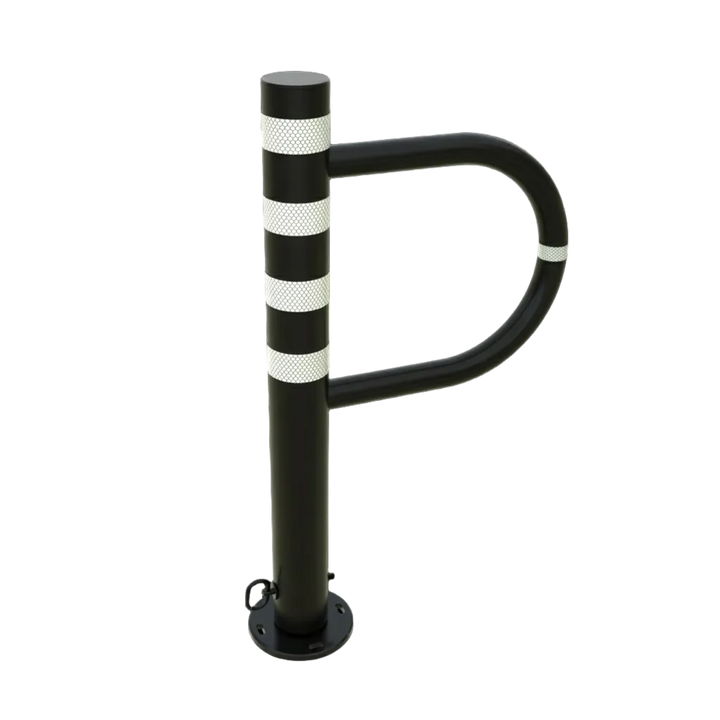

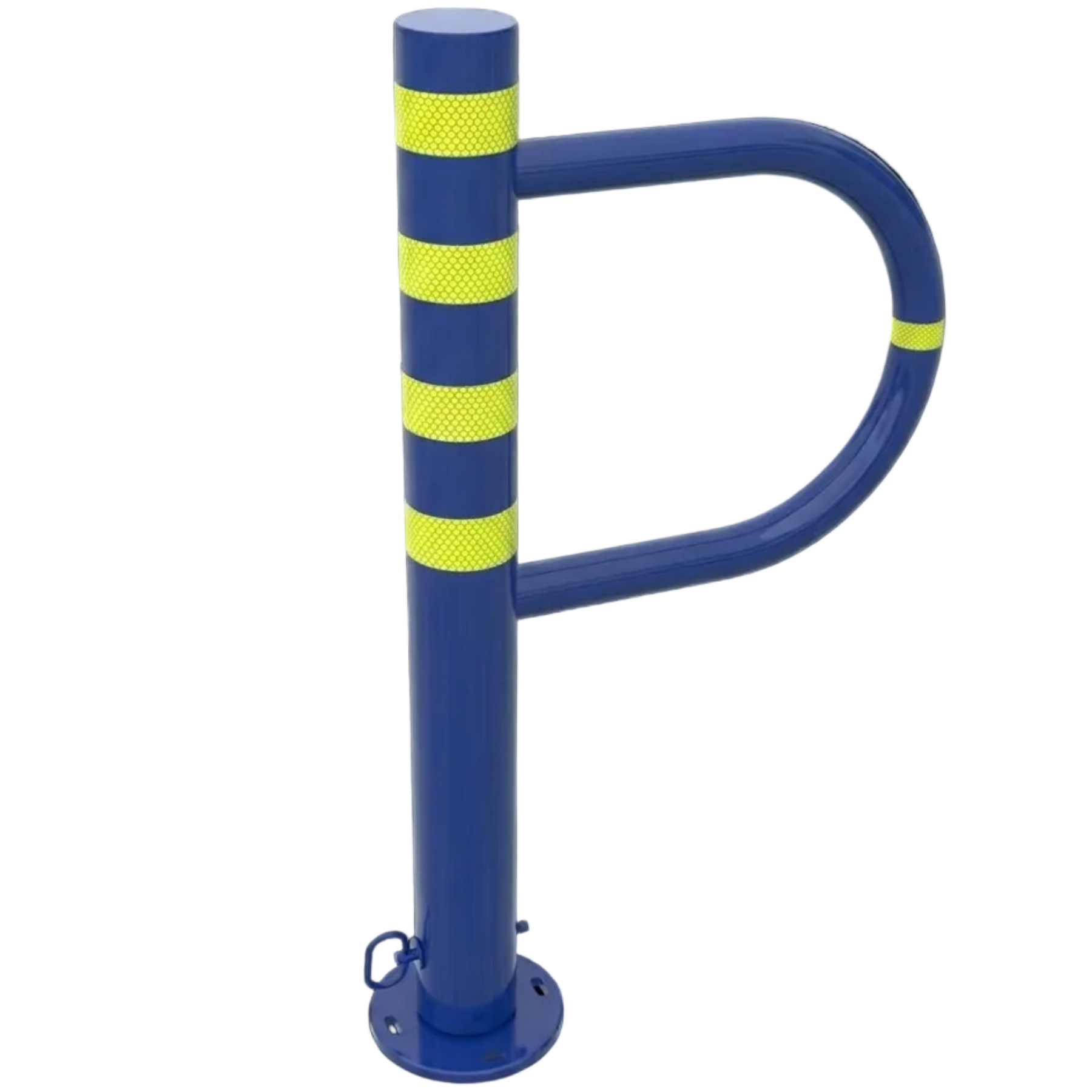

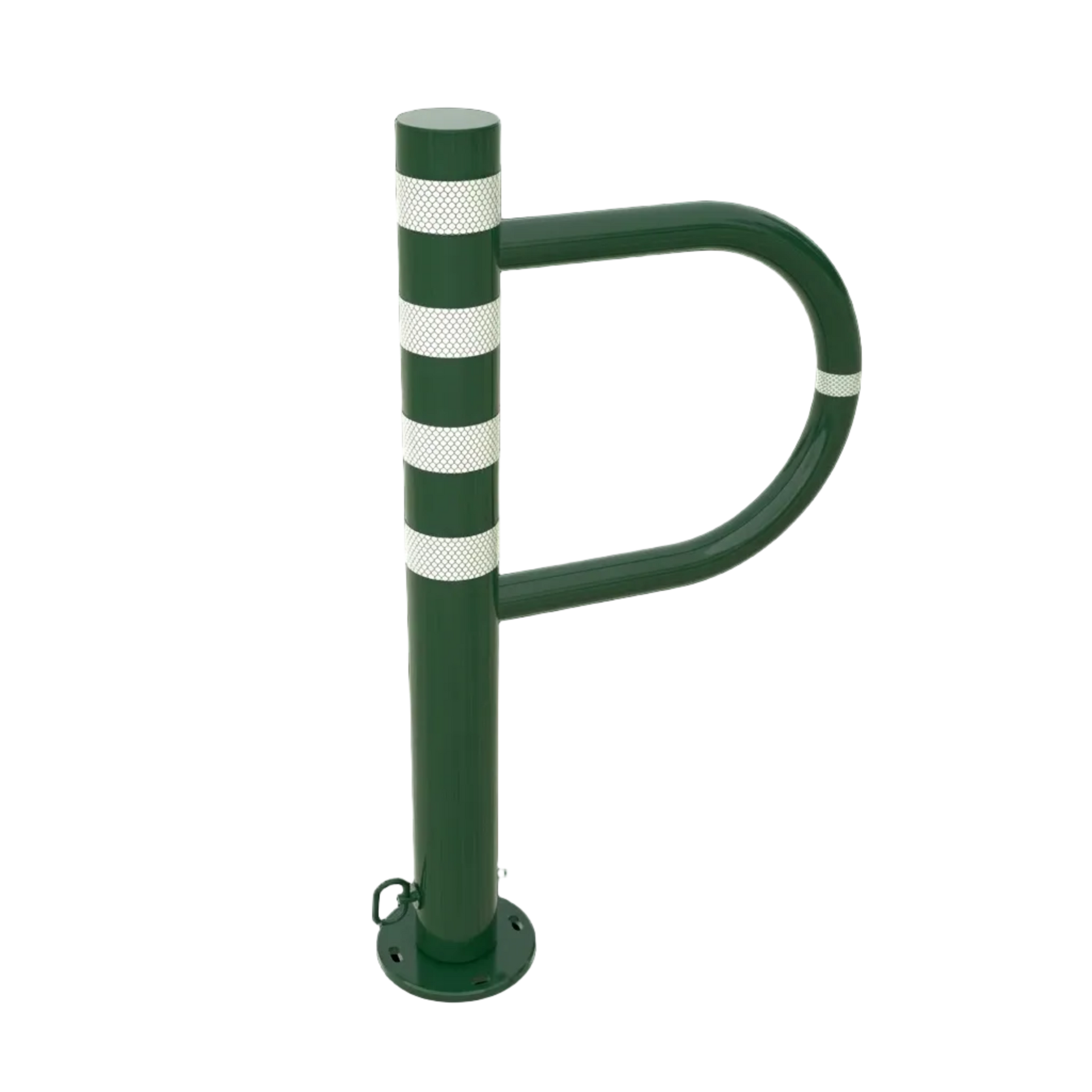

A single-arm chicane creates a slight deviation in the path to encourage users to slow down. A two-arm chicane creates a more restrictive path that further reduces travel speed. The choice depends on the level of control desired, the width of the trail, and the type of users frequenting the site.
Chicanes are generally installed at the entrance to bike paths, near intersections, on multi-use trails, in parks, and in areas where cyclists and pedestrians share the same space. They serve to secure potential conflict points and better control traffic flow.

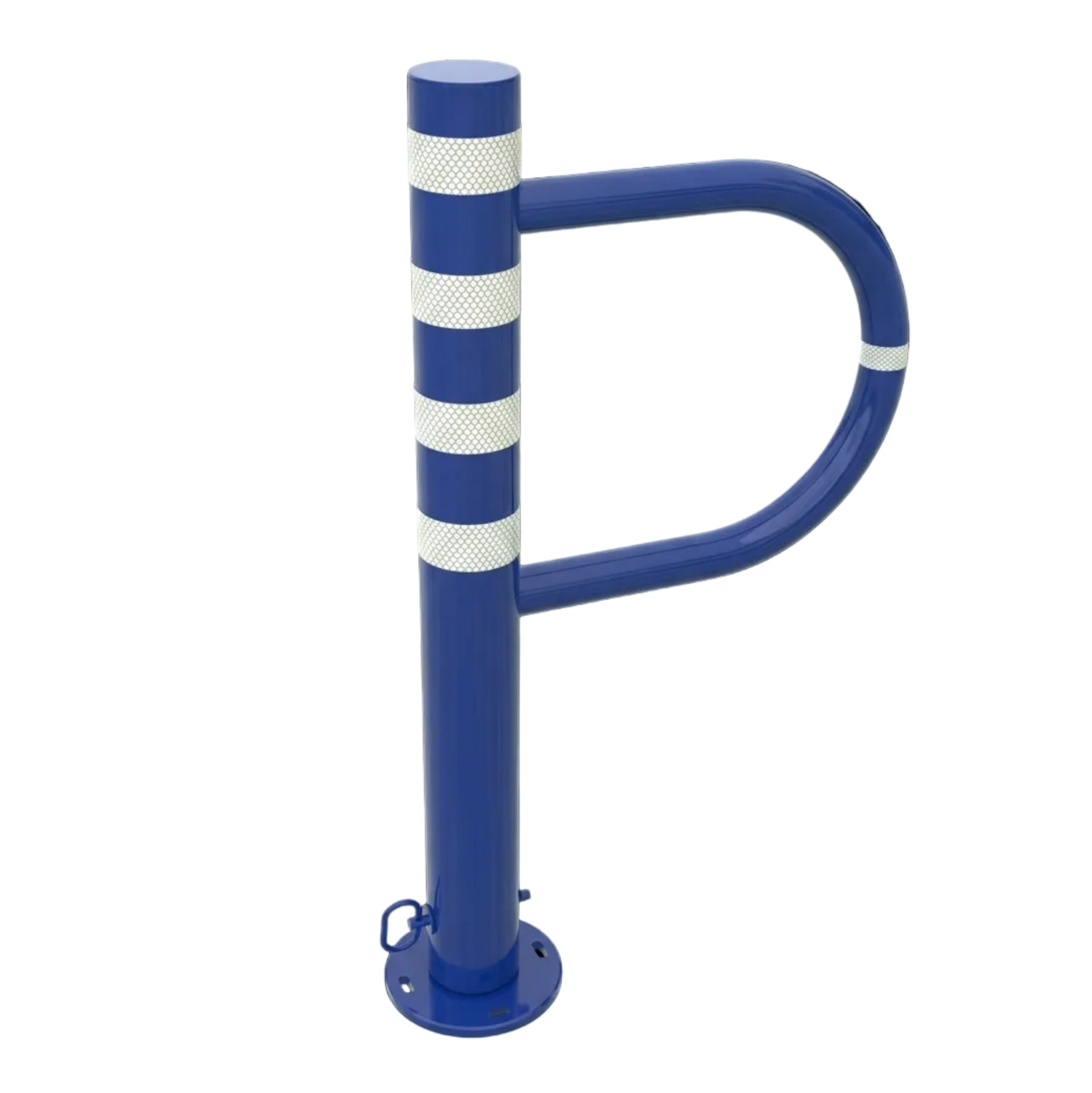

Yes. Kalitec baffles are available in different configurations, colours and sizes to blend seamlessly into existing environments. They can also be adapted to the specific requirements of a municipal or institutional project.
Yes. Made of aluminum and featuring a durable coating, Kalitec baffles are resistant to corrosion, UV rays, and freeze-thaw cycles. They are designed for a long service life in Quebec's outdoor environments.
Yes. Kalitec baffles can be equipped with an opening and locking system to quickly clear the way when required. This feature facilitates access for emergency and maintenance vehicles while maintaining daily traffic control.
Chicanes are effective in moderating speeding, enhancing the safety of road users, particularly pedestrians and cyclists. They optimize traffic flow and transform high-risk areas into safer spaces.
Traffic calming chicanes can restrict access for emergency vehicles. This is why Kalitec's rotating chicane system is essential. It allows authorized vehicles to pass through, thereby securing public spaces.
